Fastest Way To Insert the Data in MS SQL – Part 4 – Turning on the useBulkCopyForBatchInsert Parameter

In previous discussions, we established that bulk insert and multi-value batched inserts represent the fastest methods for inserting data into an MS SQL Server database. However, before concluding this series, let's explore another option.

MS SQL Server has introduced the parameter useBulkCopyForBatchInsert, which automatically activates the bulk API for batched inserts. This functionality operates at the database driver level, enabling it to work seamlessly with both regular parameterized inserts and Hibernate inserts.

In this post, we will examine the performance impact of enabling this parameter on Hibernate inserts and JDBC inserts. We will compare them with regular batch inserts, manual Bulk API usage, and multi-value JDBC inserts.

The code utilized for these examples remains consistent with that used in previous posts and will not be reiterated.

I conducted tests to insert 1,000,000 Person objects with various batch sizes (100, 1,000, 10,000, and 20,000). Each test was executed 10 times, and the median time was calculated. With the parameter enabled, the results are as follows:

The JdbcTemplate insert remains faster by approximately 2 seconds for each batch size, even with a batch size of 100. This demonstrates that Hibernate introduces overhead in processing entities, likely stemming from entity state tracking. However, it's noteworthy that this overhead remains constant regardless of the batch size used.

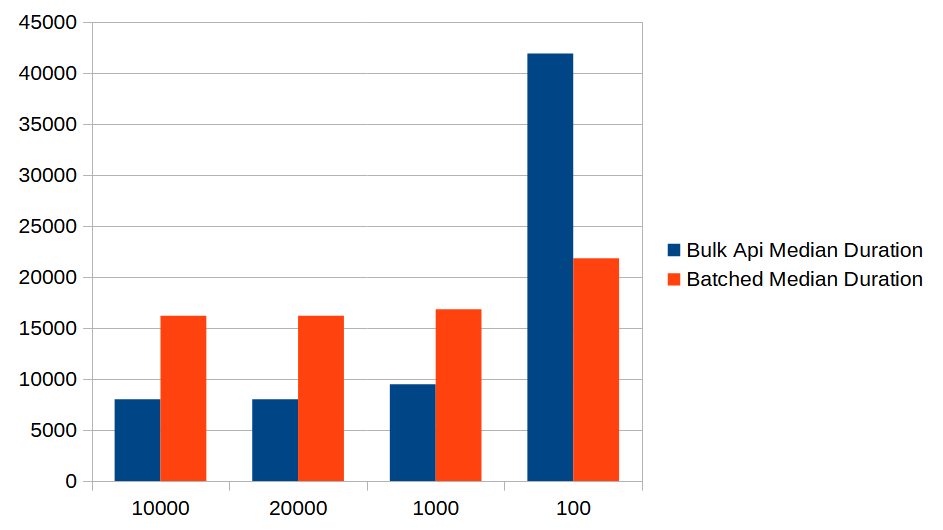

Now, let's compare these results with regular batch inserts. To provide clearer insights, I'll present two separate tables comparing the performance of Hibernate inserts and JDBC inserts. Hibernate insert performance:

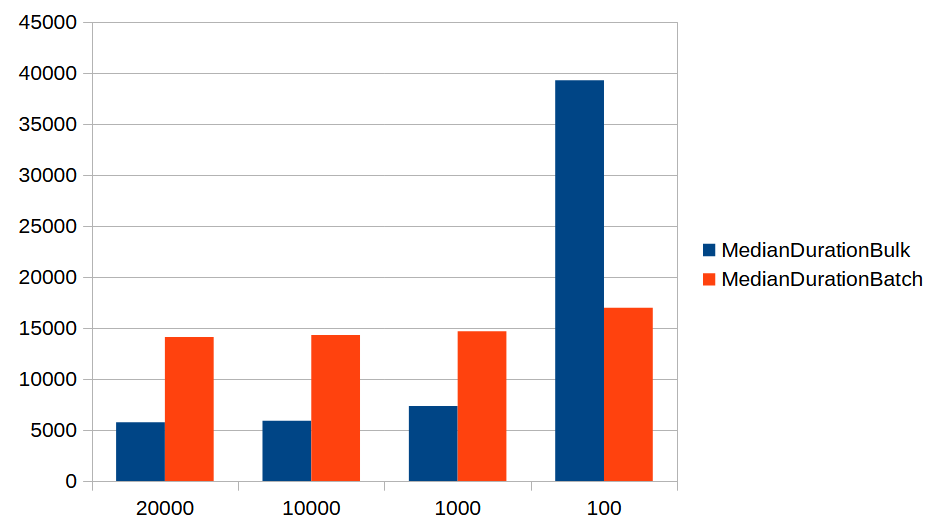

JDBC insert performance:

With the JDBC batching parameter enabled, we observe an average performance improvement of around 2 times. Its behavior resembles that of the Bulk API discussed in the previous post. For larger batch sizes and datasets, the Bulk API outperforms, but for smaller batches, it exhibits poorer performance compared to regular batch inserts. This is logical, considering that enabling the batching parameter essentially utilizes the Bulk API in the background.

Now, how does this relate to multi-value inserts from the previous post?

The best-performing multi-value insert method had a batch size of 100 and 2,000 bind parameters (inserting 400 persons per insert statement). It achieved inserting 1,000,000 person objects into the database in 4.175 seconds (median duration), which is still superior to our best result with the bulk API parameter (5.752 seconds). Although the performance difference is not significant, the multi-insert method appears to be more advantageous from a performance standpoint, especially for small batches.

Furthermore, with manually implemented Bulk API inserts taking 3.188 seconds, it's evident that manual implementation outperforms the bulk API parameter implementation. However, for this volume of processed data, the difference isn't substantial, as time increases linearly in both cases.

Conclusion

We can observe that the bulk API can substantially enhance performance for bulk inserts involving large amounts of data.

It's important to highlight that even when enabling this parameter, the bulk API will only function if specific conditions are met. These conditions can be found on the following Microsoft page: Using bulk copy API for batch insert operation

I'd also like to mention that I encountered an issue with inserts and the bulk API parameter when the columns of a database table are ordered differently from the entity fields. You can find further details about this problem at the following link: Bulk Copy cannot handle inserts with subset or differently ordered columns. This issue has been resolved in the latest version of the Java MS SQL Server JDBC driver.

This parameter has limited utility; avoid enabling it blindly without first assessing the benefits and drawbacks it may bring to your application.
